Car Parking Systems
Audi Elevator’s car elevator is the most ideal parking and vertical transport equipment for the parking lot, car repair plants, car garages etc.
Our car elevator features as the concise equipment and the simple operation. It can have a multiple use in the same berth space with small covering area. It is applicable for various occasions with the easy and quick entry and exit, the large car area. It is fit for parking various cars.
- Technical Advantage
- Parameters
- Specifications
Audi Elevator's car elevator is the most ideal parking and vertical transport equipment for the parking lot, car repair plants, car garages etc.
Audi Elevator's car elevator adopts the mature car elevator technology. It has been developed and produced according to the special characteristics of the car products. Audi Elevator's strong technical capacity completely solves the technical obstacle of the noise and car shaking caused by the more heavier load of the traction machine system due to uneven force bearing to the car. It optimizes the features of these goods.
Audi Elevator’s Car Parking Systems can be used in household or office building parking lot. It has dual-cylinder lifting system, with more stability. It has connecting shaft to make sure synchronous balancing with low post & faster lifting speed. It has adjustable platform angle, can be used in low ceiling shop. It has safe and reliable single manual-lock release system. It is mould machining through the whole process so that the parts are universal and interchangeable. Passed 120% capacity dynamic load text and 150% static load test. It has Italian oil seal to make sure there is no oil leakage and comes with Solenoid valve which has the urgent manual lock release function.
Scissor Parking Lift
1 Post Parking Lift
2 Post Parking Lift Series
2 Post Parking Lift Single Units
2 Post Parking Lift - Superior
Easy Tilt Parking Lift

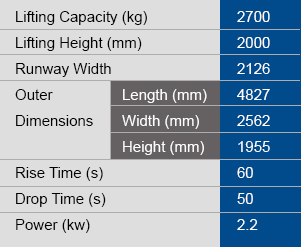

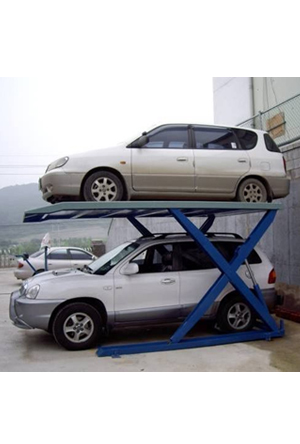

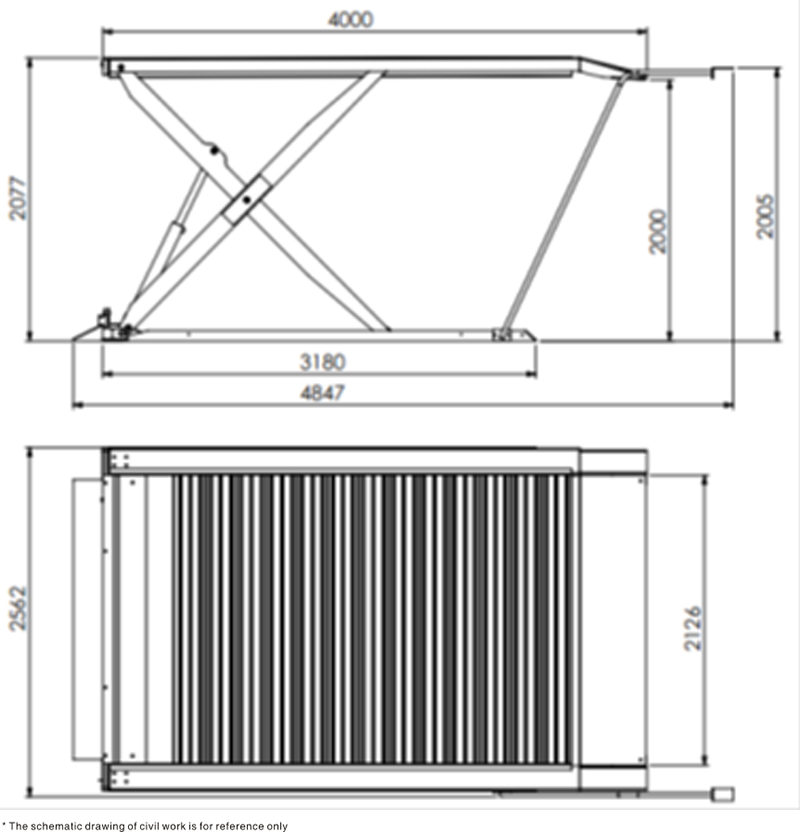

Scissor Parking Lift
Standard Technical Specification
• Can be used in household or office building parking lot
• Dual-cylinder lifting system, more stable
• Connecting shaft to make sure synchronous balancing
• Low post, faster lifting speed
• Platform angle adjustable, can be used in low ceiling shop
• Single manual- lock release system, safe and reliable
• Mould machining through the whole process so that the parts are universal and interchangeable
• Pass 120% capacity dynamic load text and 150% static load test
• Italian oil seal to make sure no oil leakage
• Solenoid valve has the urgent manual lock release function

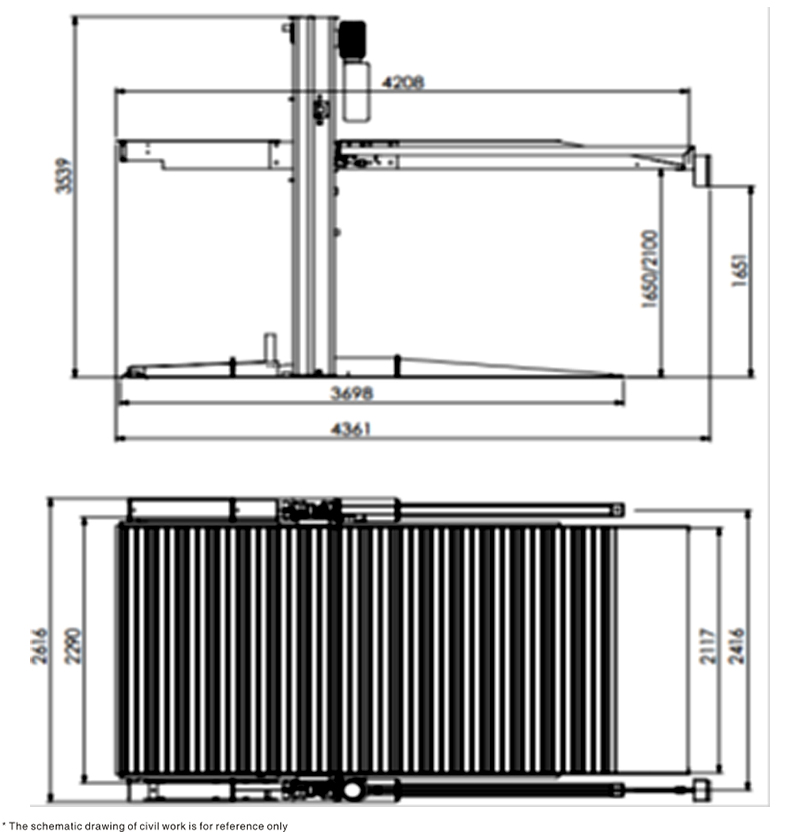

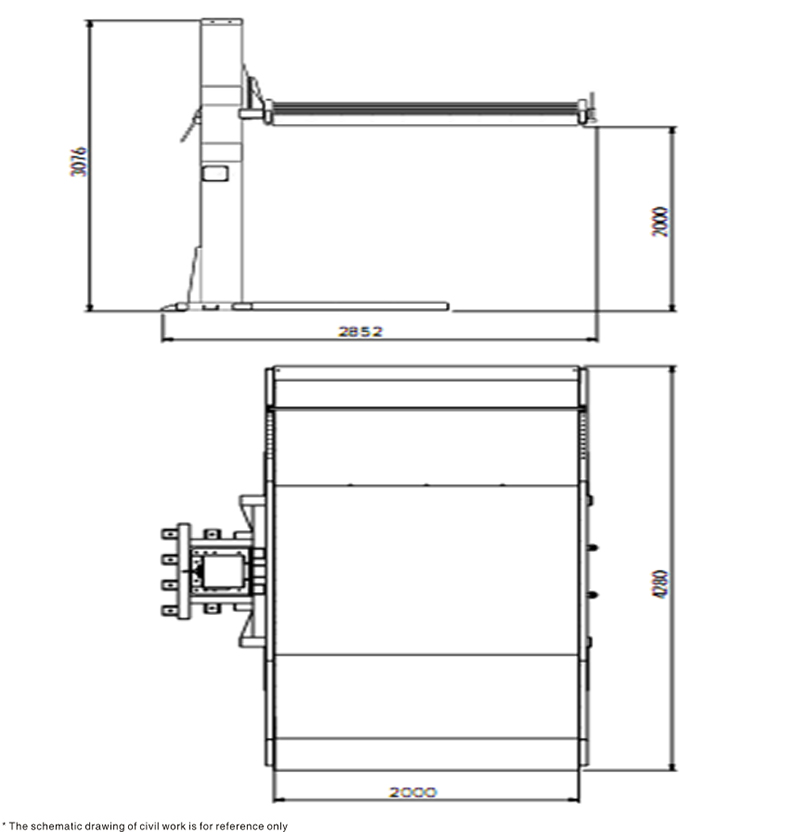

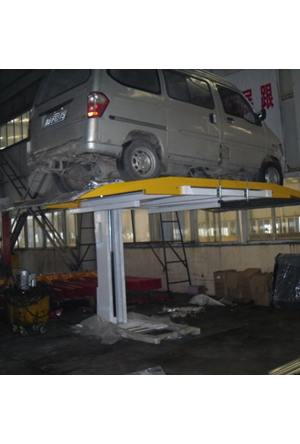

1 Post Parking Lift
Standard Technical Specification
• Space-saving single post design, free entrance and exit for driver
• Single hydraulic cylinder, chain -driven system, faster lifting speed
• Single electrical or manual lock release system , safe and reliable
• Wear resistant and heat resisting macromolecular polyethylene slide block
• Wave plate or diamond plate are optional, you can choose hot galvanizing, electroplating or powder spray
• Mould machining through the whole process so that the parts are universal and interchangeable
• Automatic arm lock release
• Pass 120% capacity dynamic load text and 150% static load test
• Italian oil seal to make sure no oil leakage
• Solenoid valve has the urgent manual lock release function
• Optional manual pump on power unit in case of power off
• Optional 24v control box, solenoid valve and electromagnet
Optional
• Manual Pump in case of power failure
• 24v control box, solenoid valve & electromagnet

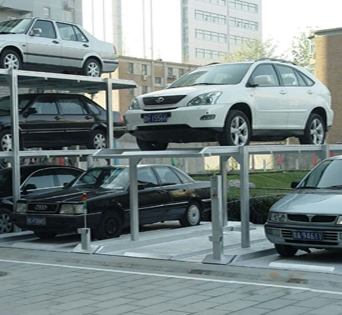

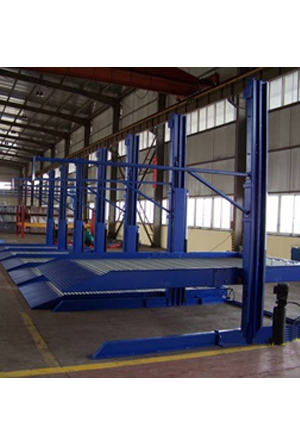

2 Post Parking Lift Series
Standard Technical Specification
• Can be used in household or office building parking lot
• Posts can be shared, more economic and steady
• Dual-cylinder lifting system, more stable and reliable
• Chain-equalization system
• Single manual or e-lock release system, safe and reliable
• Wear-resistant, heat-resistant and high strength macromolecular polyethylene slide blocks
• Optional wave plate or diamond plate, you can choose hot galvanizing, electroplating or powder spray
• Mould machining through the whole process so that the parts are universal and interchangeable
• Pass 120% capacity dynamic load test and 150% capacity static load test
• Italian oil seal to make sure no oil leakage
• Solenoid valve has the emergency manual lock release function
Optional
• Electric Lock release
• Surface treatment Galvanizing

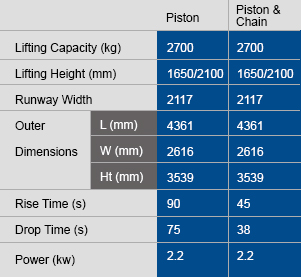

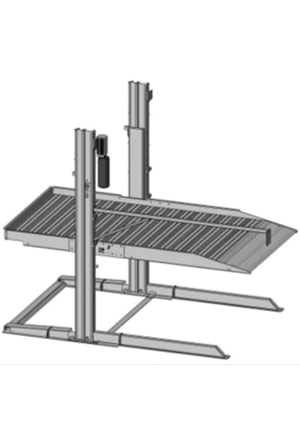

2 Post Parking Lift Single Units
Standard Technical Specification
• Can be used in household or office building parking lot
• Posts can be shared, more economic and steady
• Dual-cylinder lifting system, more stable and reliable
• Chain-equalization system
• Single manual or e-lock release system, safe and reliable
• Wear-resistant, heat-resistant and high strength macromolecular polyethylene slide blocks
• Optional wave plate or diamond plate , you can choose hot galvanizing, electroplating or powder spray
• Mould machining through the whole process so that the parts are universal and interchangeable
• Pass 120% capacity dynamic load test and 150% capacity static load test
• Italian oil seal to make sure no oil leakage
• Solenoid valve has the emergency manual lock release function
Optional
• Electric Lock release
• Surface treatment Galvanizing

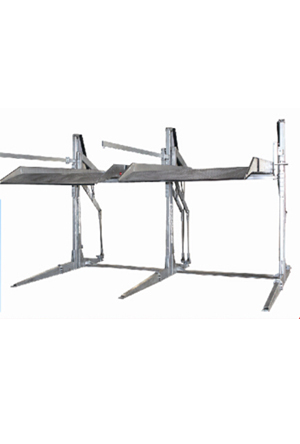

2 Post Parking Lift - Superior
Standard Technical Specification
• Can be used in household or office building parking lot
• Posts can be shared, more economic and steady
• Dual-cylinder lifting system, more stable and reliable
• Chain-equalization system
• Single manual or e-lock release system, safe and reliable
• Wear-resistant, heat-resistant and high strength macromolecular polyethylene slide blocks
• Optional wave plate or diamond plate, you can choose hot galvanizing, electroplating or powder spray
• Mould machining through the whole process so that the parts are universal and interchangeable
• Pass 120% capacity dynamic load test and 150% capacity static load test
• Italian oil seal to make sure no oil leakage
• Solenoid valve has the emergency manual lock release function
Optional
• Surface treatment Galvanizing

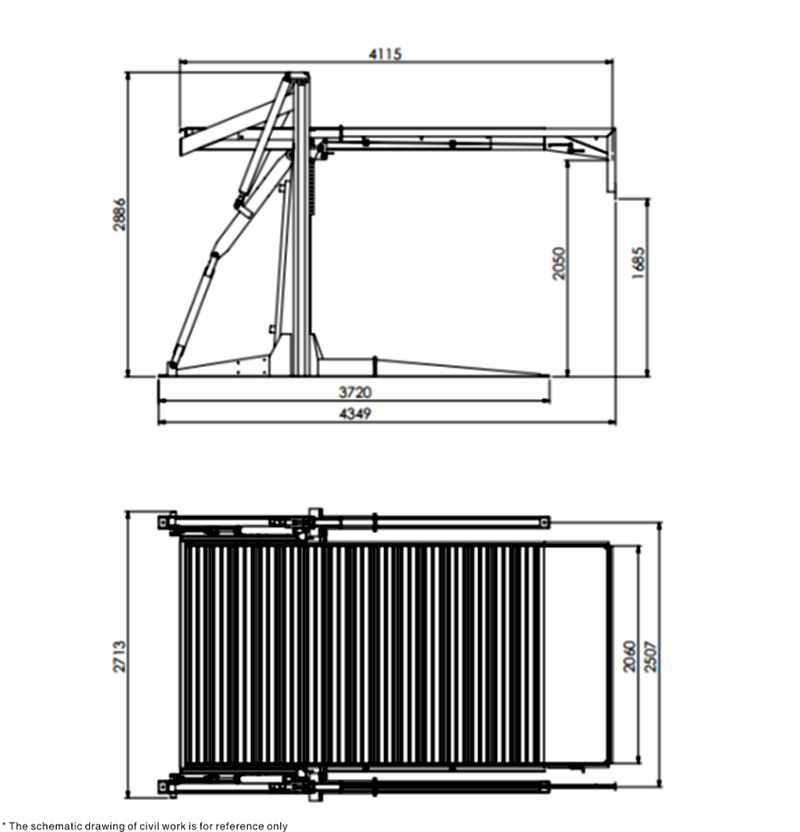

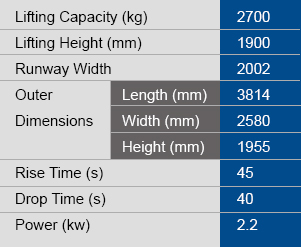

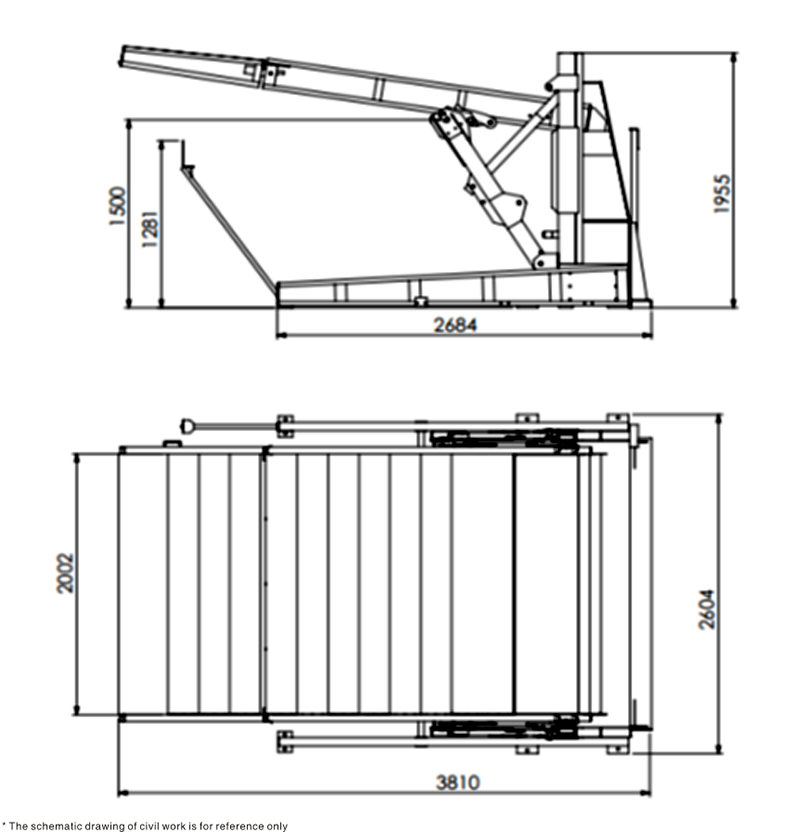

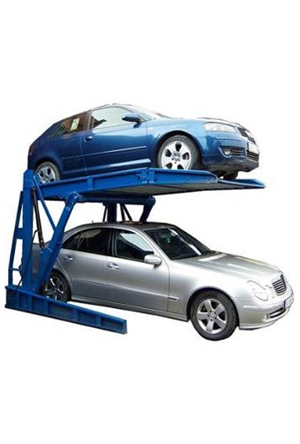

Easy Tilt Parking Lift
Standard Technical Specification
• Can be used in household or office building parking lot
• Dual-cylinder lifting system, more stable and reliable
• Connecting shaft to make sure synchronous balancing
• Low post, faster lifting speed
• Platform angle adjustable, can be used in low ceiling shop
• Single manual or e-lock release system, safe and reliable
• Mould machining through the whole process so that the parts are universal and interchangeable
• Pass 120% capacity dynamic load test and 150% capacity static load test
• Italian oil seal to make sure no oil leakage
• Solenoid valve has the emergency manual lock release function

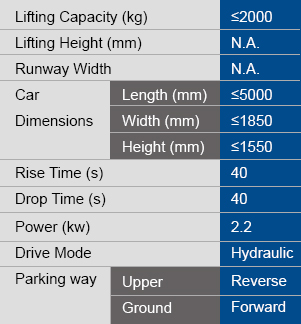

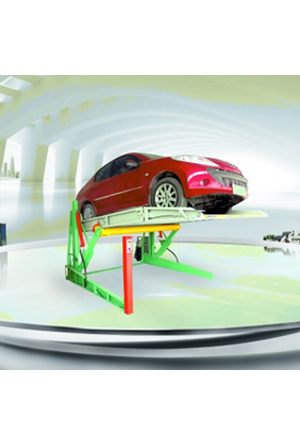

Car Double-Easy Parking
Standard Technical Specification
• Designed for low ceiling height places and home use
• Upper plate ramp design, makes full use of spaces
• Oil cylinder lift, hydraulic drive, safety and reliable low-carbon and environmental protection
• Platform all closed design, avoid oil-leaking
• Guiding structure, low noise, stable running

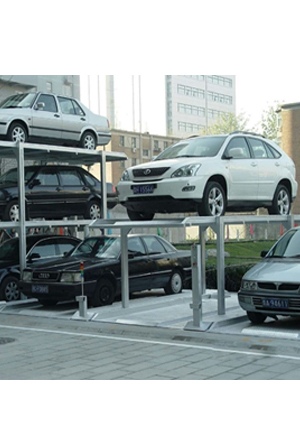

PJS parking lift (Minus-one & plus-three)
Specifications may vary as per requirement and drawing
Technical feature and scope of application:
• This parking system is cost-optimal with simple structure and easy operation
• It is safe & reliable with multiple safety protection devices
• It is for residence communities, enterprise and public institutions, basements, etc. The parking system takes full advantage of basement spaces, increasing double parking spaces or more in a certain area.
Operating principle:
When operating personnel input garage accessing passwords + parking numbers and then press the confirm button, the lifting action will be done automatically with appointed parking space reaching the garage ground. Drivers can drive their cars to the pallets of the corresponding parking spaces or drive away from the pallets.

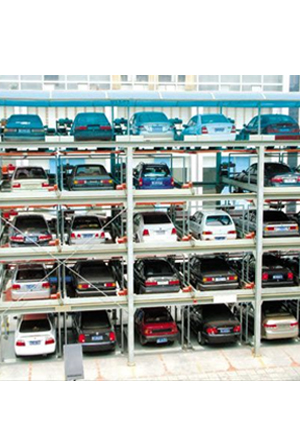

Car Puzzle (Lift & Slide)
Specifications may vary as per requirement & drawing

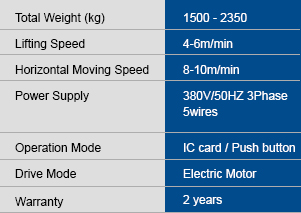

Standard Technical Specification
• Lateral and vertical movement of platforms used to accommodate multiple cars in a puzzle like structure
• Enclosed area can be halved in comparison to conventional parking spaces
• Optimal utilisation of spaces with multiple rows and columns being highly adjustable, easy to maintain and providing investment benefits
